The mastered industrial PC board that reduces the cost and development time of your business solutions.

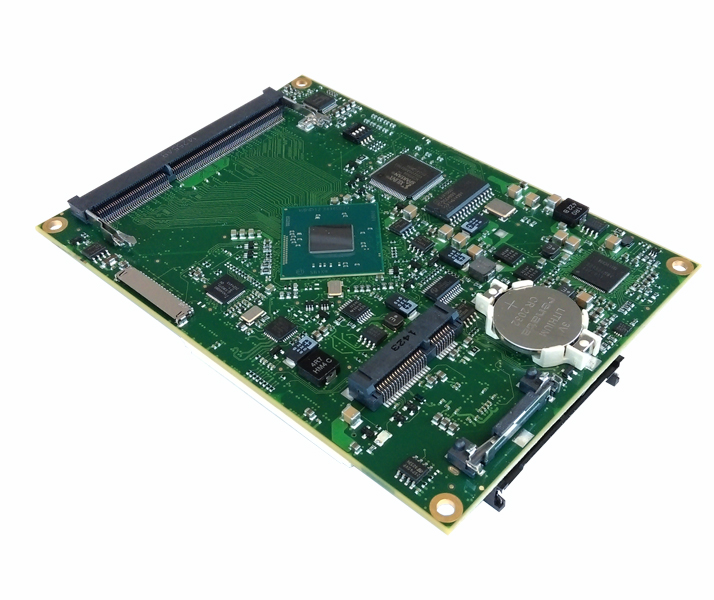

The MPC-Baytrail is the 2nd ACTIA PCs industrial CPU board for Intel® ATOM™ processor.
Compact and powerful, the SOM integrates all the standard PC functions to ensure a fast implementation of your most complex industrial systems.
With ACTIA PCs solutions, you have a long-life availability and mastered CPU board allowing you to focus on the design of your carrier board, specific to your business field.
Characteristics
| Titre 1 | Standard PC |
|---|---|
| Processor(s) | Intel ATOM E3825 1,33 Ghz dual core / 1M Cache or Intel ATOM E3845 1,91Ghz quad core / 1M Cache |
| Chipset(s) | SoC Intel® Bay Trail |
| Memory | Up to 4 Gb of DDR3 |
| Ethernet | Intel i820 PCI Express Ethernet controller, 10/100/1000 Mbs |
| Video controller | Intel® HD Graphics integrated controller, Two independent display pipes, Shared video memory with dynamic allocation, 3D acceleration: DirectX 11 |
| IDE 1 | Compact Flash Ultra DMA 100 interface |
| SATA | 1x SATA 2.0 |
| PCIe | 1 Mini PCI Express half-size slot |
| Audio | Intel® HD-AUDIO audio controller |
| BIOS | ATON Systèmes, ACPI support |
| Titre 2 | Display |
| Display | VGA / LVDS 18 bits / HDMI 1.4 |
| Resolution | VGA – 2560×1600 @60 Hz / LVDS – 1600×1200 |
| Titre 3 | Functions |
| Protected input / output | 8x digital Inputs / 8x digital Outputs |
| CAN | CAN 2.0b |
| COM | 2x COM port |
| USB | 6x USB 1.1 / 2.0 ports |
| Audio input | stereo configurable |
| Audio output | stereo configurable |
| Titre 4 | Power supply |
| Input voltage | 5 V single voltage input |
| Power consumption | 9W |
| Titre 5 | Environment |
| Operating temperature | -40°C / +85°C |
| Titre 6 | Mechanical |
| Dimensions | 136mm x 97mm |
